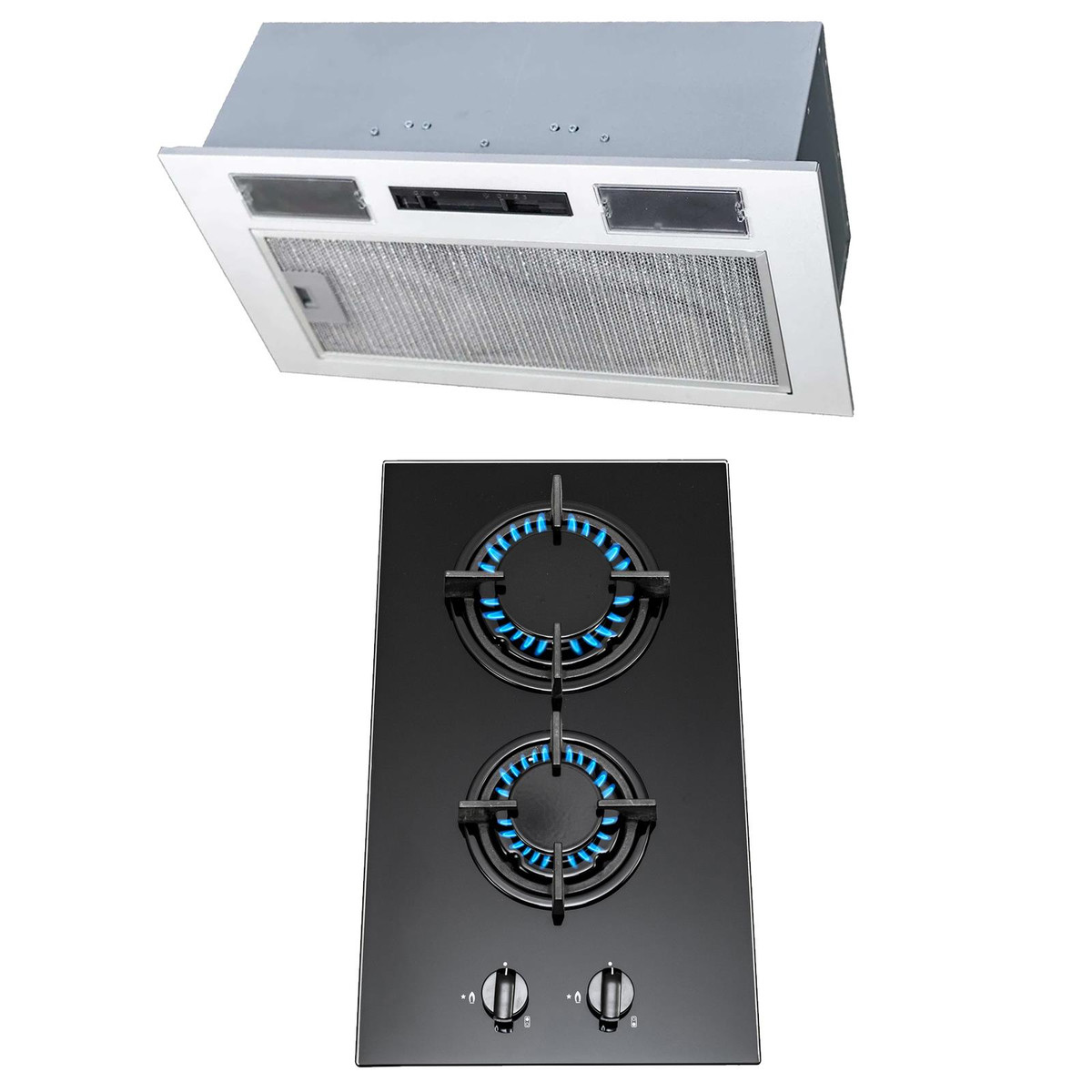

The GHG301BL-UC52SI package consists of a 30cm domino gas hob and a 52cm built-in canopy cooker hood. With 2 cooking zones of 2 different sizes, front mounted controls and a sleek attractive black glass finish, the hob has everything you need to cook your meals effortlessly. The cooker hood is small in design but powerful, helping you to keep your kitchen clean and fresh. Being built into a cupboard means this appliance will integrate into your kitchen for a seamless and discreet look. This set is perfect for those looking for high quality appliances to fit into a small space, such as student accommodation or caravans.
The hob features a flame failure safety device (FFD), which stops the flow of gas when a flame goes out, preventing gas leaks. The LPG conversion kit is a set of small brass jets that allow you to convert the hob to use bottled butane or propane, if you do not have access to a natural gas connection.
The UC52SI is suitable for either internal re-circulation – air is passed through a charcoal filter, purified and released back into the kitchen, or external extraction – cooking odours and vapours are transferred outside with the help of a ducting kit. Please see below for the appropriate accessories.
These products boasts a 2 Years Parts & Labour Guarantee* to give you the reassurance you need when buying a new appliance.
SIA GHG301BL 30cm Black 2 Burner Gas on Glass Domino Hob & Cast Iron Stands
Features
Front dial controls
Heavy-duty cast iron pan stands and enamel burner caps
Flame failure safety device
LPG conversion kit included
Easy clean glass surface
Automatic ignition
Cooking Zones
Front burner – Semi-rapid (kW): 1.75
Rear burner – Rapid (kW): 3.0
Technical Details
Nominal power (kW): 4.75
Fuse rating (A): 3
Product dimensions (mm): W303 x D520
Cut-out dimensions (mm): W287 x D498
Net / gross weight (kg): 6.4 / 7.1
Mains lead length (m): 1 (UK standard plug supplied)
Gas inlet: ½ inch male threaded connection
Please note this appliance must be installed by a Gas Safe engineer.
SIA UC52SI 52cm Built In Cupboard Canopy Cooker Hood Extractor Fan
Features
3 variable speeds
Slider controls
2 x 4W LED lights
Single motor
Ducted or re-circulated installation
1 x Dishwasher proof grease filter
Optional Accessories
SIA2 re-circulation charcoal filters available from our store
D1 & D3 external ducting kits available from our store
Fitting Notes
Please ensure there is enough ceiling height to accommodate the clearance needed between the appliance and the hob.
Required height over electric hob (mm): 650
Technical Specifications
Ducting outlet diameter (mm): 125
Extraction rate (m³/hr): 275
Noise level (dBa): 63
Fuse rating (A): 3
Product dimensions (mm): W520 x D298 x H173
Net / gross weight (kg): 4.4 / 5.3
Power (W): 48
Mains lead length (m): 1
Please note that there is no plug supplied with this product.
*Guarantee subject to registration within 30 days of purchase.
