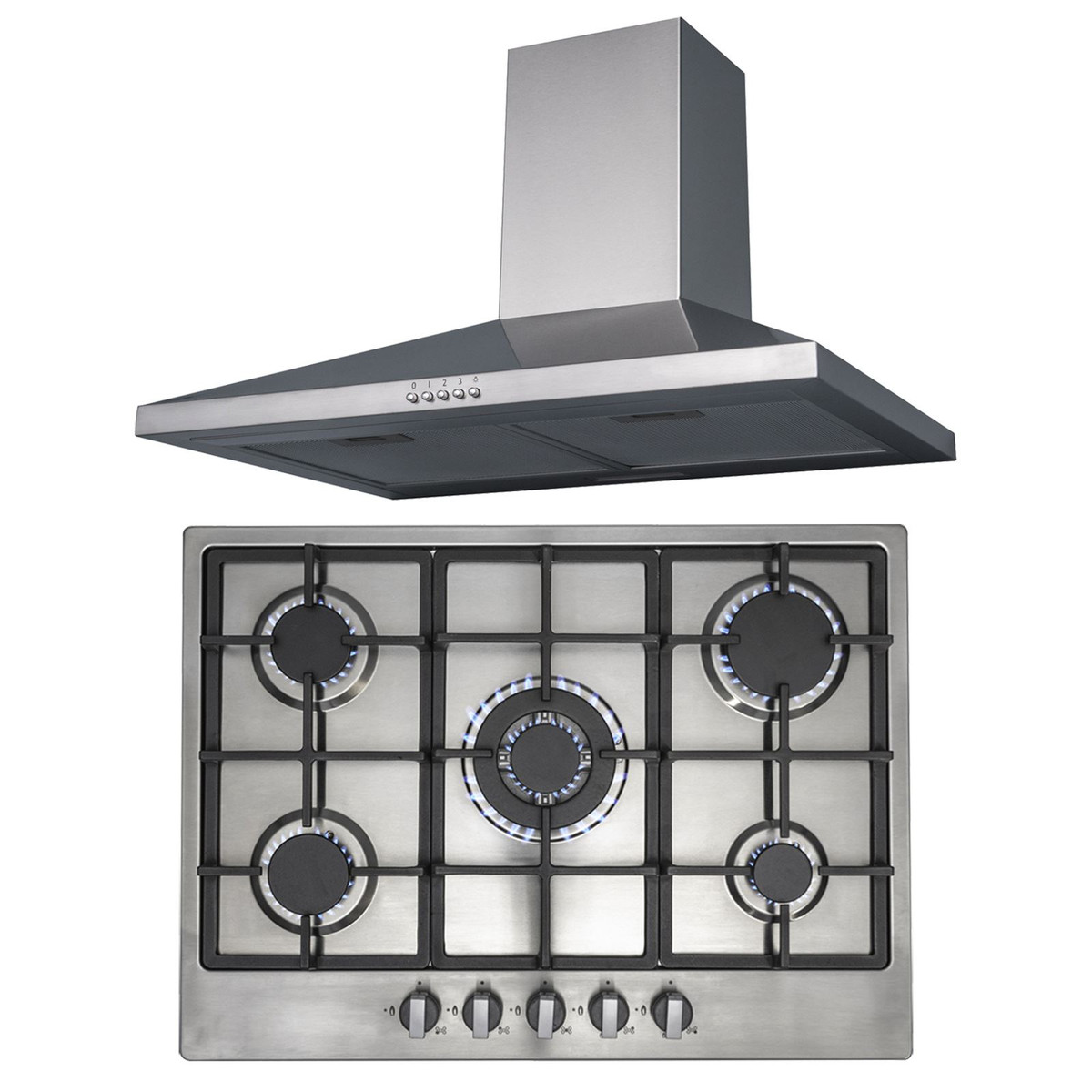

The SIA R6-CHL70SS pack consists of a stainless steel, 70cm 5 burner gas hob and chimney cooker hood. The hob has a stylish design, finished in contemporary stainless steel alongside the sturdy cast iron pan supports and matt enamel burner caps it is sure to add a classy touch to any modern kitchen. You can be assured, as with all gas hobs, it will provide you with full control over the cooking temperatures at all times with it’s front dial controls, even heat distribution and faster cooking times. The cooker hood has a powerful single fan motor and 3 variable speed settings so this unit is suited for any type of cooking. SIA is our in-house range of kitchen appliances that provides high quality at an affordable cost.
The hob features a flame failure safety device (FFD), which stops the flow of gas when a flame goes out, preventing gas leaks. The LPG conversion kit is a set of small brass jets that allow you to convert the hob to use bottled butane or propane, if you do not have access to a natural gas connection.
The cooker hood is suitable for either internal re-circulation – air is passed through a charcoal filter, purified and released back into the kitchen, or external extraction – cooking odours and vapours are transferred outside with the help of a ducting kit. Please see below for the appropriate accessories.
These products come with a 2 Years Parts & Labour Guarantee* to give you the reassurance you need when buying a new appliance.
SIA R6 70cm Stainless Steel 5 Burner Gas Hob With Cast Iron Pan Supports And FFD
Features
Front dial controls
Heavy-duty cast iron pan stands and burner caps
Flame failure safety device
LPG conversion kit included
Automatic ignition
Burners
Front left burner – semi-rapid (kW): 1.75
Rear left burner – semi-rapid (kW): 1.75
Front right burner – auxiliary (kW): 1.0
Rear right burner – rapid (kW): 3.0
Centre burner – triple flame (kW): 3.8
Technical Specifications
Nominal power (kW): 11.3
Fuse rating (A): 3
Product dimensions (mm): W680 x D500
Cut-out dimensions (mm): W557 x D477
Net / gross weight (kg): 9.8 / 11.5
Mains lead length (m): 1
Gas inlet: ½ inch male threaded connection
Please note this appliance must be installed by a Gas Safe engineer.
SIA CHL70SS 70cm Chimney Cooker Hood Kitchen Extractor Fan In Stainless Steel
Features
3 variable speeds
Push button controls
1 x 1.5W LED light
Single fan motor
Ducted or re-circulated installation
2 x dishwasher safe aluminium grease filters
2 x telescopic chimney sections
Optional Accessories
SIA2 re-circulation filters available to buy from our store
D5 & D7 external ducting kits available to buy from our store
Fitting Notes
Please ensure there is enough ceiling height to accommodate the clearance needed between the appliance and the hob.
Required height over gas hob (mm): 750
Technical Specifications
Ducting outlet diameter (mm): 150
Extraction rate (m3/hr): 400
Noise level (dBa): 66
Fuse rating (A): 3
Product dimensions (mm): W700 x D490 x H610-760
Height of chimney sections (mm): 330 + 330
Net / gross weight (kg): 11.5 / 14.5
Power (W): 26.5
Mains lead length (m): 1
Please note that there is no plug supplied with this product.
*Guarantee subject to registration within 30 days of purchase.
