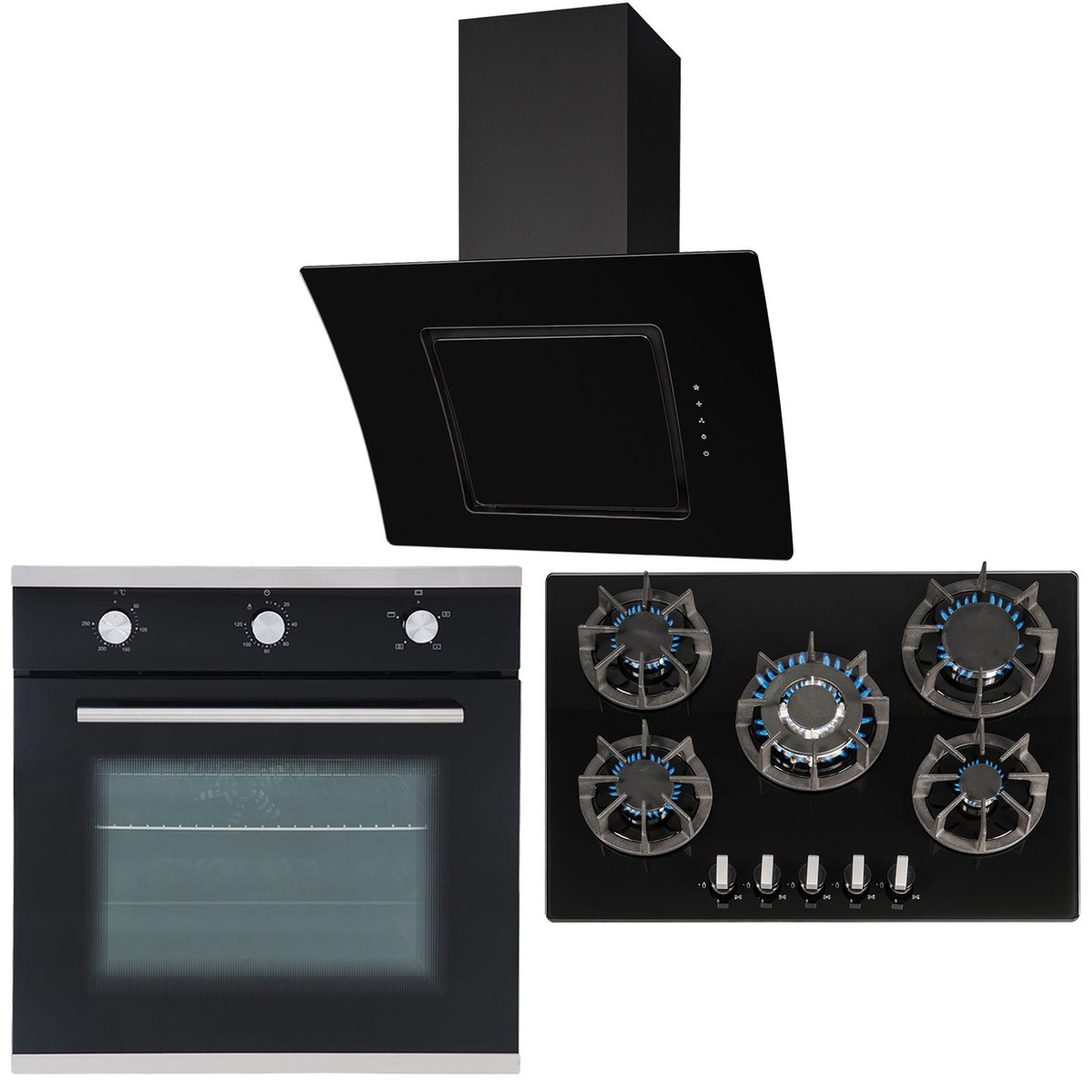

The SO101-R8-AT71BL package provides you with everything you need for a new kitchen renovation. It combines a stylish 60cm single electric true fan oven with a classy 70cm hob and hood. The R8 features heavy duty cast iron supports and a wok burner and the sleek touch control angled hood will help you keep your kitchen clean whilst illuminating the hob with its LED downlights. SIA is our in-house brand that provides high quality un-branded products to suit any budget.
The R8 features a flame failure safety device (FFD), which stops the flow of gas when a flame goes out, preventing gas leaks. The LPG conversion kit is a set of small brass jets that allow you to convert the hob to use bottled butane or propane, if you do not have access to a natural gas connection.
The AT71BL is the perfect choice for those with little headroom. The sloped design and shallower depth mean they do not protrude from the wall as much as other cooker hoods. This cooker hood is suitable for either internal re-circulation – air is passed through a charcoal filter, purified and released back into the kitchen, or external extraction – cooking odours and vapours are transferred outside with the help of a ducting kit. Please see below for the appropriate accessories.
These products come with a 2 Years Parts & Labour Guarantee* to give you the reassurance you need when buying a new appliance.
SIA SO101 60cm Black Built In Multi Function Electric Single True Fan Oven
Features
Main colour: black
True fan
Removable door and internal glass panel
Mechanical timer
Internal 25W halogen light
ActivEnamel interior
Chrome racked sides with anti-tilt shelves
Multi-function
Technical Specifications
Installation type: built-in and built-under
Temperature range (ºC): 50-250
Power (kW): 2.0
Net capacity (L): 55
Energy class: A
Fuse rating (A): 13 (can be used with a plug)
Net / gross weight (kg): 30.0 / 33.0
Product dimensions (mm): W595 x D535 (580 with handle) x H595
Number of shelves: 1
Number of oven trays: 1
Please note that this product is not supplied with a cable or plug.
SIA R8 70cm Black 5 Burner Gas On Glass Kitchen Hob With Cast Iron Pan Stands
Features
Front dial controls
Heavy-duty cast iron pan stands & burner caps
Flame failure safety device
LPG conversion kit included
Easy clean glass surface
Automatic ignition
Burners
Front left burner – semi-rapid (kW): 1.75
Rear left burner – semi-rapid (kW): 1.75
Front right burner – auxiliary (kW): 1.0
Rear right burner – rapid (kW): 3.0
Centre burner – triple flame (kW): 3.8
Technical Specifications
Nominal power (kW): 11.3
Fuse rating (A): 3
Product dimensions (mm): W700 x D510
Cut-out dimensions (mm): W557 x D477
Net / gross weight (kg): 14.7 / 16.7
Mains lead length (m): 1
Gas inlet: ½ inch male threaded connection
Please note this appliance must be installed by a gas safe engineer.
SIA 70cm Black Touch Control Angled Curved Glass Cooker Hood Kitchen Extractor
Features
3 variable speeds
Soft touch controls
2 x 1W LED lights
Single fan motor
Ducted or re-circulating installation
1 x dishwasher safe aluminium grease filter
2 x telescopic chimney sections
Timer mode – can run for 15 minutes after cooking with auto turn off
Black curved glass
Optional Accessories
SIA2 charcoal filter for re-circulation available on our store
D1 & D3 external ducting kits available on our store
Fitting Notes
Please ensure there is enough ceiling height to accommodate the clearance needed between the appliance and the hob.
Required height over gas hob (mm): 750
Technical Specification
Ducting outlet diameter (mm): 125
Extraction rate (m3/hr): 550
Noise level (dBa): 66
Fuse rating (A): 3
Product dimensions (mm): W700 x D340 x H806-1106
Height of chimney sections (mm): 400 + 330
Net / gross weight (kg): 15.0 / 16.8
Power (W): 112
Mains lead length (m): 1
Please note that there is no plug supplied with this product.
*Guarantee subject to registration within 30 days of purchase.
