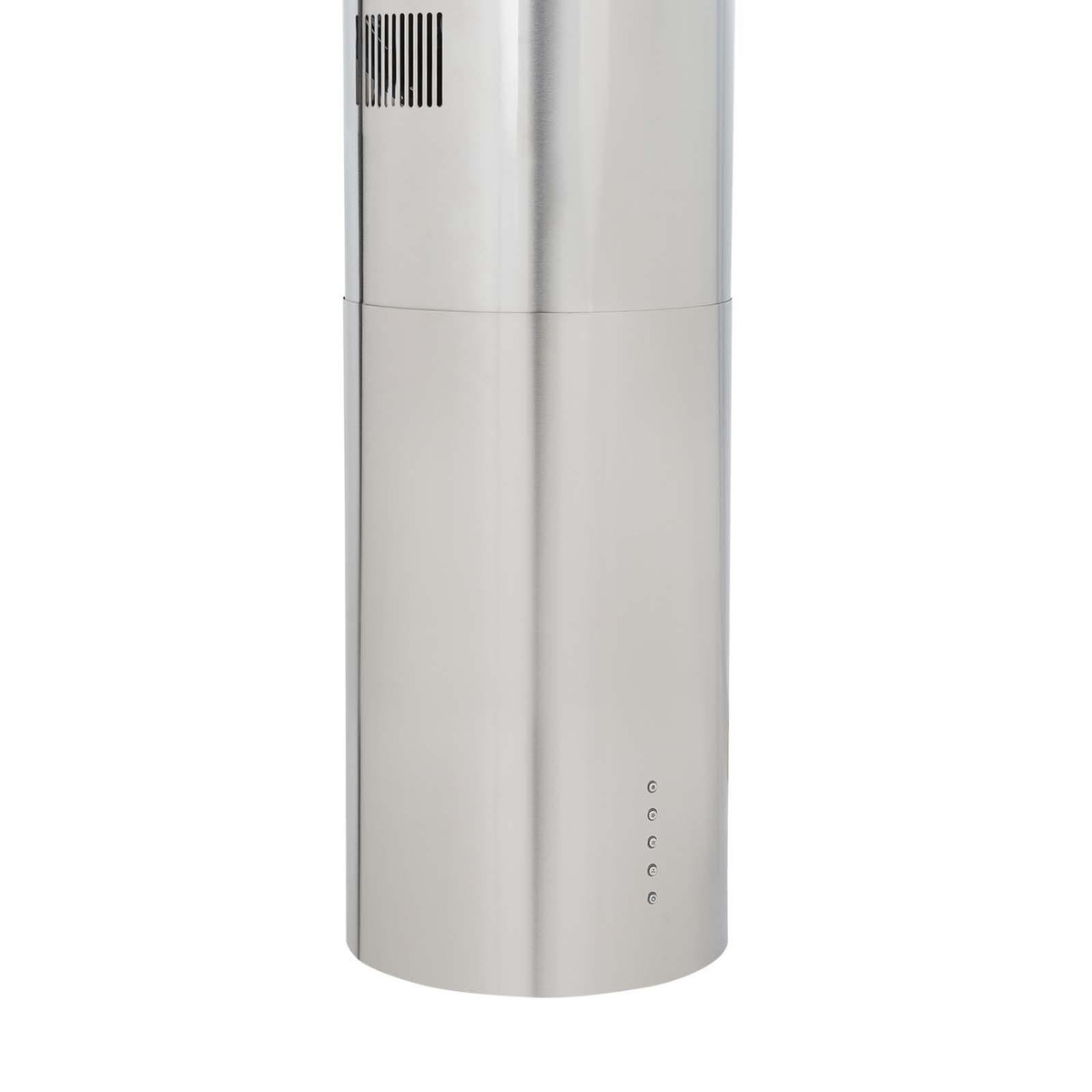

The CYL35SS is an island cooker hood with a modern cylindrical design and a powerful extraction rate. It has a modern brushed stainless steel finish that allows it to blend seamlessly into any style of kitchen whilst becoming a focal point. It has a dishwasher-safe aluminium grease filter, easy to use button controls and 2 x LED downlights to help illuminate your cooking area.
This island hood is suitable for either internal re-circulation – air is passed through charcoal filters, purified and released back into the kitchen, or external extraction – cooking odours and vapours are transferred outside with the help of a ducting kit. Please see below for the appropriate accessories.
This product boasts a 2 Years Parts & Labour Guarantee* to give you the reassurance you need when buying a new appliance.
Features
3 variable speeds
Push button controls
2 x 1W LED lamps
Twin fan motor
Ducted or re-circulated installation
1 x dishwasher safe aluminium grease filter
2 x telescopic chimney sections
Optional Accessories
SIA2 (2 required) re-circulation charcoal filters available from our store
D5 & D7 external ducting kits available from our store
Fitting Notes
Please ensure there is enough ceiling height to accommodate the clearance needed between the appliance and the hob.
Required height over gas hob (mm): 750
Required height over electric hob (mm): 650
Please note that if the hob manual states the clearance must be greater than the above, this will override these instructions.
Technical Specification
Ducting outlet diameter (mm): 150
Extraction rate (m3/hr): 850
Noise level (dBa): 68
Fuse rating (A): 3
Product dimensions (mm): W350 x D350 x H900-1150
Height of chimney sections (mm): 600 + 600
Net / gross weight (kg): 13.8 / 17.5
Power (W): 182
Mains lead length (m): 1
Please note that there is no plug supplied with this product.
*Guarantee subject to registration within 30 days of purchase.
