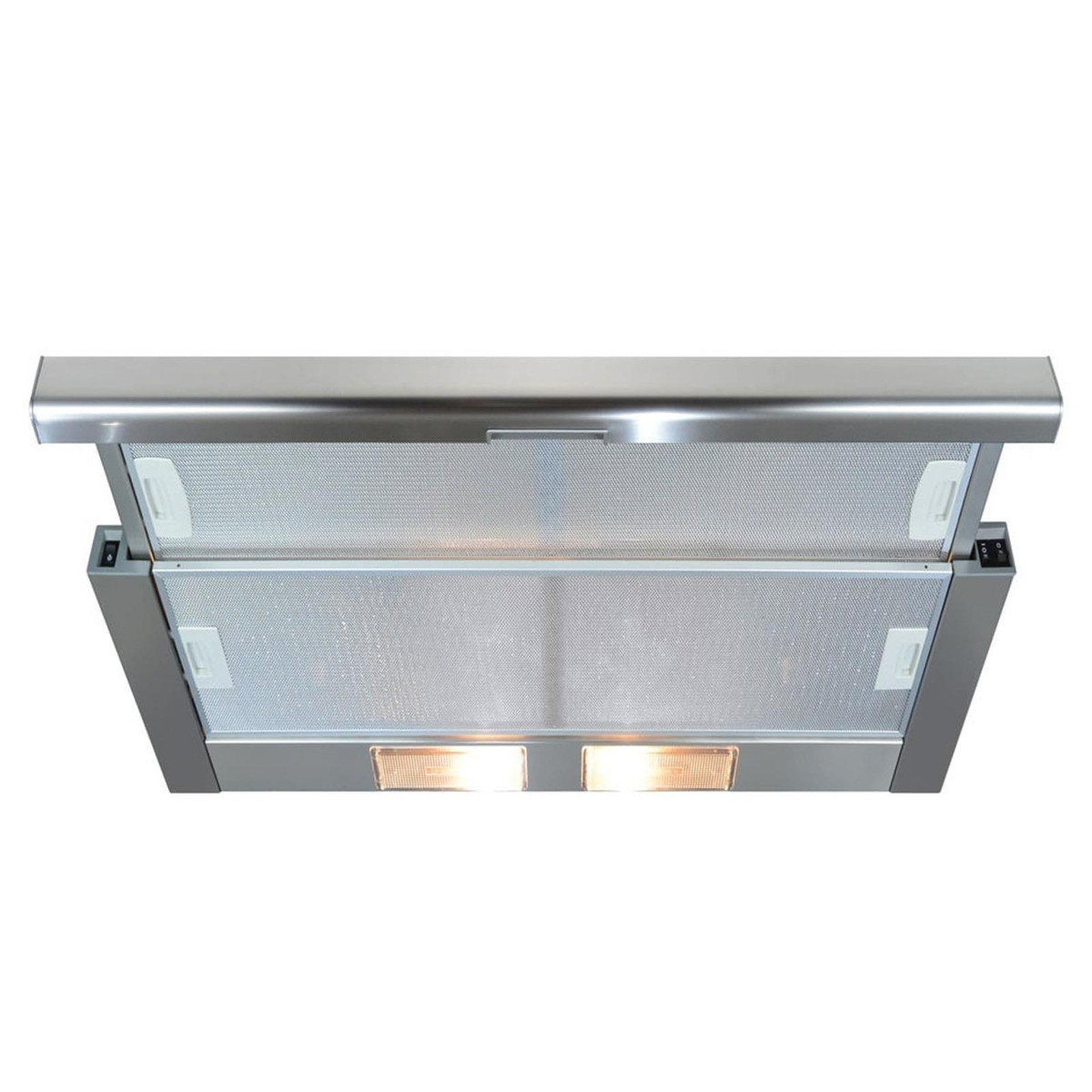

The CDA CTE9SS is a 90cm telescopic integrated extractor fan with a modern stainless steel design. It has a compact size when not in use allowing it to easily blend in with your kitchens décor and has multiple speeds so you can adjust it based on your cooking. It comes with dishwasher safe aluminium grease filters to help you keep your kitchen clean and fresh and 2 x 6W LED downlights to help illuminate your hob.
This cooker hood is suitable for either internal re-circulation – air is passed through a charcoal filter, purified and released back into the kitchen, or external extraction – cooking odours and vapours are transferred outside with the help of a ducting kit. Please see below for the appropriate accessories.
This product boasts a 5 Year Parts & 2 Year Labour Guarantee* to give you the reassurance you need when buying a new appliance.
Features
3 variable speeds
Rocker control
2 x 6W LED lamp
Single fan motor
Ducted or re-circulating installation
2 x dishwasher safe aluminium grease filters
Optional Accessories
CHA35 re-circulation charcoal filters
AED51/53/54 external ducting kits available from our store
Fitting Notes
Please ensure there is enough ceiling height to accommodate the clearance needed between the appliance and the hob.
Required height over gas hob (mm): 750
Required height over electric hob (mm): 650
Please note that if the hob manual states the clearance must be greater than the above, this will override these instructions.
Technical Specifications
Ducting outlet diameter (mm): 120
Extraction rate (m3/hr): 367
Noise level (dBa): 63
Fuse rating (A): 3
Product dimensions (mm): W900 x D310-430 x H174
Power (W): 226
Mains lead length (m): 1
Please note that there is no plug supplied with this product.
*Guarantee subject to registration within 30 days of purchase.
