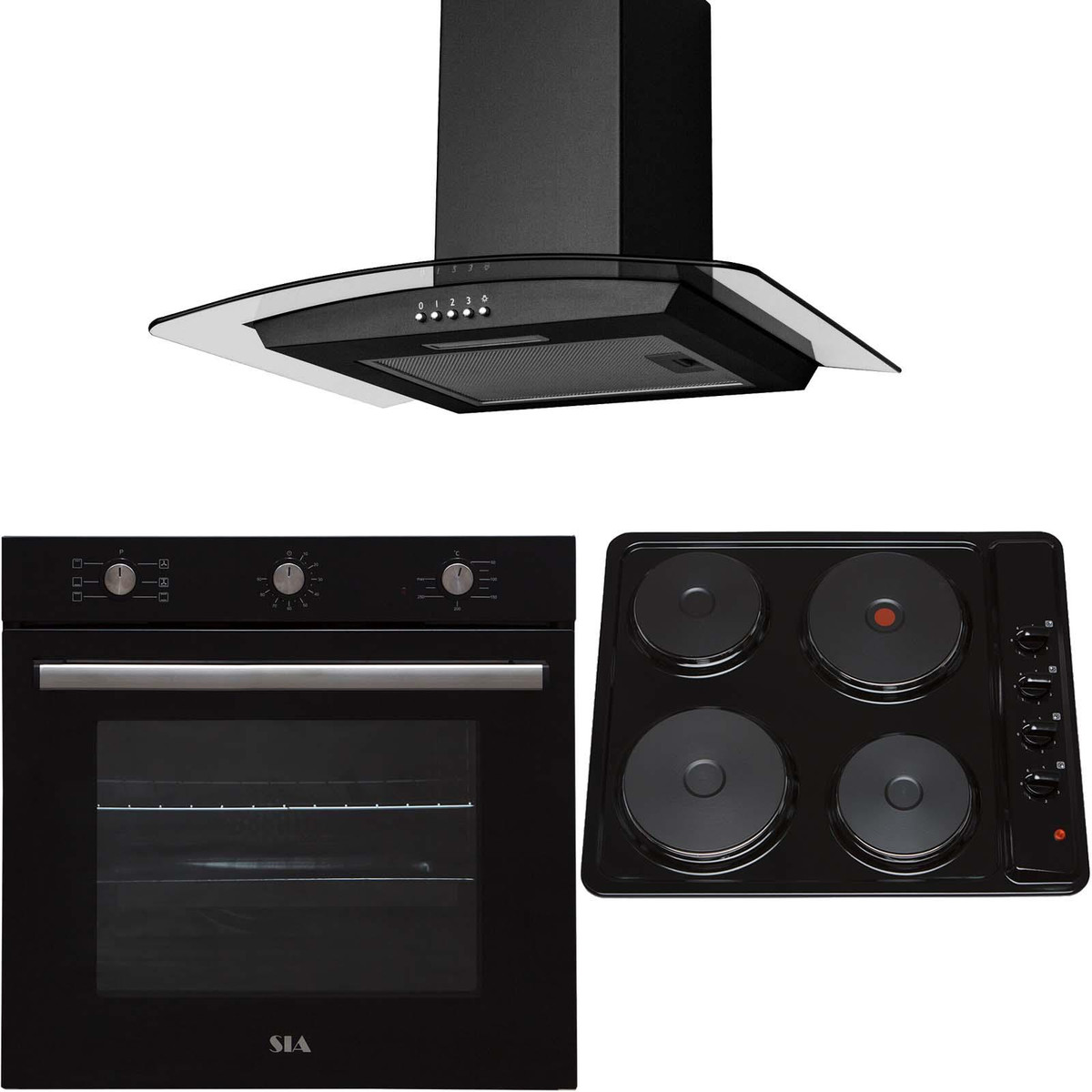

The FSO10BL-PHP601BL-CGH60BL pack from SIA is a stylish yet functional, built-in single oven, 4 zone electric solid plate hob and curved glass chimney cooker hood. The simple dial controls make using the appliances a piece of cake and the built-in oven can be mounted under a worktop or at eye level, so it can match any kitchen style. These appliances have been chosen to complement each others design and fit into any modern kitchen.
The CGH60BL cooker hood is suitable for either internal re-circulation – air is passed through a charcoal filter, purified and released back into the kitchen, or external extraction – cooking odours and vapours are transferred outside with the help of a ducting kit. Please see below for the appropriate accessories.
SIA FSO10BL 60cm Black 71L Capacity Built-in 6 Function Electric Single Fan Oven
Features
Main colour: black
Removable door
Internal light
Multi-function
Oven type: fan assisted
Mechanical Timer
Technical Specifications
Installation type: built-in and built-under
Temperature range (ºC): 50-300
Power (kW): 2.2
Net capacity (L): 71
Energy class: A
Fuse rating (A): 10 (can be used with a plug)
Product dimensions (mm): W595 x D566 x H595
Number of shelves: 1
Number of oven trays: 1
Guarantee: 1 year
This product comes with a cable & (13A) Plug
SIA PHP601BL 60cm Black 4 Zone Electric Solid Plate Easy Clean Side Control Hob
Features
Side dial controls
Easy wipe clean surface
Cooking Zones
Front left zone size (mm): 185 | zone power (kW): 1.5
Rear left zone size (mm): 145 | zone power (kW): 1.0
Front right zone size (mm): 145 | zone power (kW): 1.0
Rear right zone size (mm): 185 | zone power (kW): 2.0
Technical Details
Nominal power (kW): 5.5
Fuse rating (A): 25
Product dimensions (mm): W580 x D500 x H76
Cut-out dimensions (mm): W557 x D477
Net / gross weight (kg): 8.0 / 9.5
Guarantee: 5 year parts & 2 year labour upon registration
Please note this appliance does not come with a plug or cable and must be hardwired by a qualified electrician
SIA CGH60BL 60cm Curved Glass Black Chimney Cooker Hood Kitchen Extractor Fan
Features
3 variable speeds
Push button controls
1 x 1W LED lamp
Single fan motor
Ducted or re-circulated installation
1 x dishwasher safe aluminium grease filter
2 x telescopic chimney sections
Optional Accessories
SIA2 re-circulation charcoal filters available from our store
D5 & D7 external ducting kits available from our store
Fitting Notes
Ensure sufficient ceiling height to accommodate clearance between hob & extractor
Required height over gas hob: 750mm
Required height over electric hob: 650mm
(If your hob manual states a higher clearance then this overrides these instructions)
Technical Specification
Ducting outlet diameter (mm): 150
Extraction rate (m³/hr): 400
Noise level (dBa): 65
Fuse rating (A): 3
Dimensions (mm): W600 x D450 x H430-800
Height of chimney sections (mm): 400+400
Net / gross weight (kg): 8.0 / 10.0
Power (W): 26
Mains lead length (m): 1
Guarantee: 5 year parts & 2 year labour upon registration
Please note that there is no plug supplied with this product.
