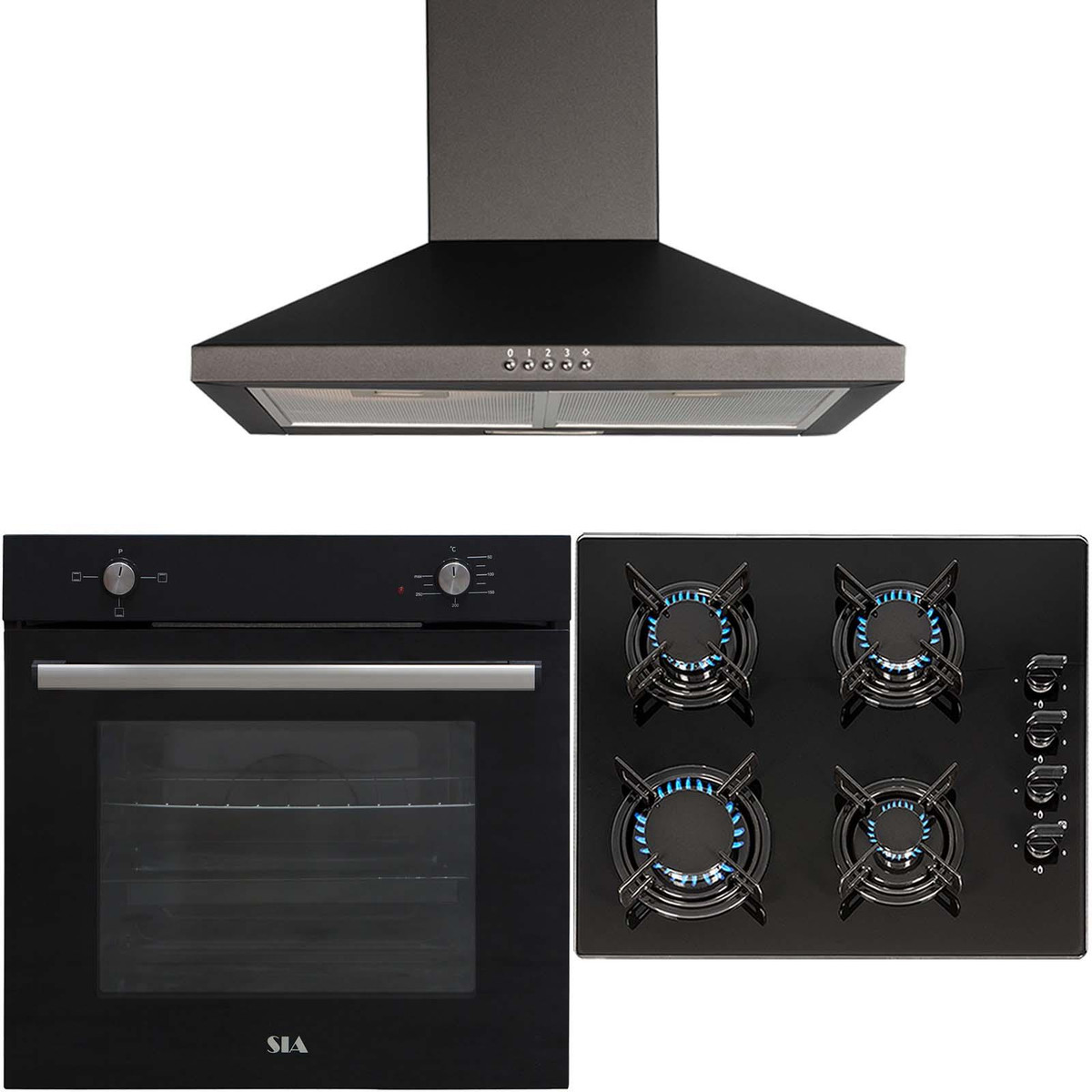

The SIA SSO10BL-GHG612BL-CHL60BL pack from SIA is a stylish yet functional, built-in single oven, 4 burner black glass hob and to match, a 60cm pyramid chimney cooker hood. The simple dial controls make using the appliances a piece of cake and the built-in oven can be mounted under a worktop or at eye level, so it can match any kitchen style. The cooker hood is small yet powerful helping you keep your kitchen clean and fresh and has a simplistic design that will fit in with your kitchens décor. These appliances have been chosen to complement each others design and fit into any modern kitchen.
The GHG612BL hob features a flame failure safety device (FFD), which stops the flow of gas when a flame goes out, preventing gas leaks. The LPG conversion kit is a set of small brass jets that allow you to convert the hob to use bottled butane or propane, if you do not have access to a natural gas connection.
The CHL60BL cooker hood is suitable for either internal re-circulation – air is passed through a charcoal filter, purified and released back into the kitchen, or external extraction – cooking odours and vapours are transferred outside with the help of a ducting kit. Please see below for the appropriate accessories.
SIA SSO10BL 60cm Black Built In Multi Function Electric Single Oven 75L Capacity
Features
Removable door
Internal light
Multi-function
Technical Specifications
Installation type: built-in and built-under
Temperature range (ºC): 50-300
Power (kW): 2.2
Energy class: A+
Fuse rating (A): 10 (can be used with a plug)
Product dimensions (mm): W595 x D566 x H595
Number of shelves and oven trays: 1
Guarantee: 1 year
This product comes with a cable & (13A) Plug
SIA GHG612BL 60cm Black 4 Burner Gas On Glass Hob With Enamel Pan Stands & FFD
Features
Side dial controls
Enamel pan stands and burner caps
Flame failure safety device
LPG conversion kit included
Easy clean glass surface
Automatic ignition
Burners
Front left burner – rapid (kW): 3.0
Rear left burner – semi-rapid (kW): 1.75
Front right burner – auxiliary (kW): 1.0
Rear right burner – semi-rapid (kW): 1.75
Technical Specifications
Nominal power (kW): 7.5
Fuse rating (A): 3
Product dimensions (mm): W580 x D500
Cut-out dimensions (mm): W557 x D477
Net / gross weight (kg): 9.5 / 11.0
Mains lead length (m): 1 (UK standard plug supplied)
Gas inlet: ½ inch male threaded connection
Guarantee: 5 year parts & 2 year labour upon registration
Please note this appliance must be installed by a gas safe engineer.
SIA CHL60BL 60cm Pyramid Chimney Cooker Hood Kitchen Extractor Fan In Black
Features
3 variable speeds
Push button controls
1 x 1.5W LED light
Single fan motor
Ducted or re-circulated installation
2 x dishwasher safe aluminium grease filters
2 x telescopic chimney sections
Optional Accessories
SIA2 re-circulation filters available to buy from our store
D5 & D7 external ducting kits available to buy from our store
Fitting Notes
Please ensure there is enough ceiling height to accommodate the clearance needed between the appliance and the hob.
Required height over gas hob (mm): 750
Technical Specification
Ducting outlet diameter (mm): 150
Extraction rate (m3/hr): 400
Noise level (dBa): 66
Fuse rating (A): 3
Product dimensions (mm): W600 x D450 x H460-760
Height of chimney sections (mm): 330 + 330
Net / gross weight (kg): 9.0 / 11.0
Power (W): 26.5
Mains lead length (m): 1
Guarantee: 5 year parts & 2 year labour upon registration
Please note that there is no plug supplied with this product.
