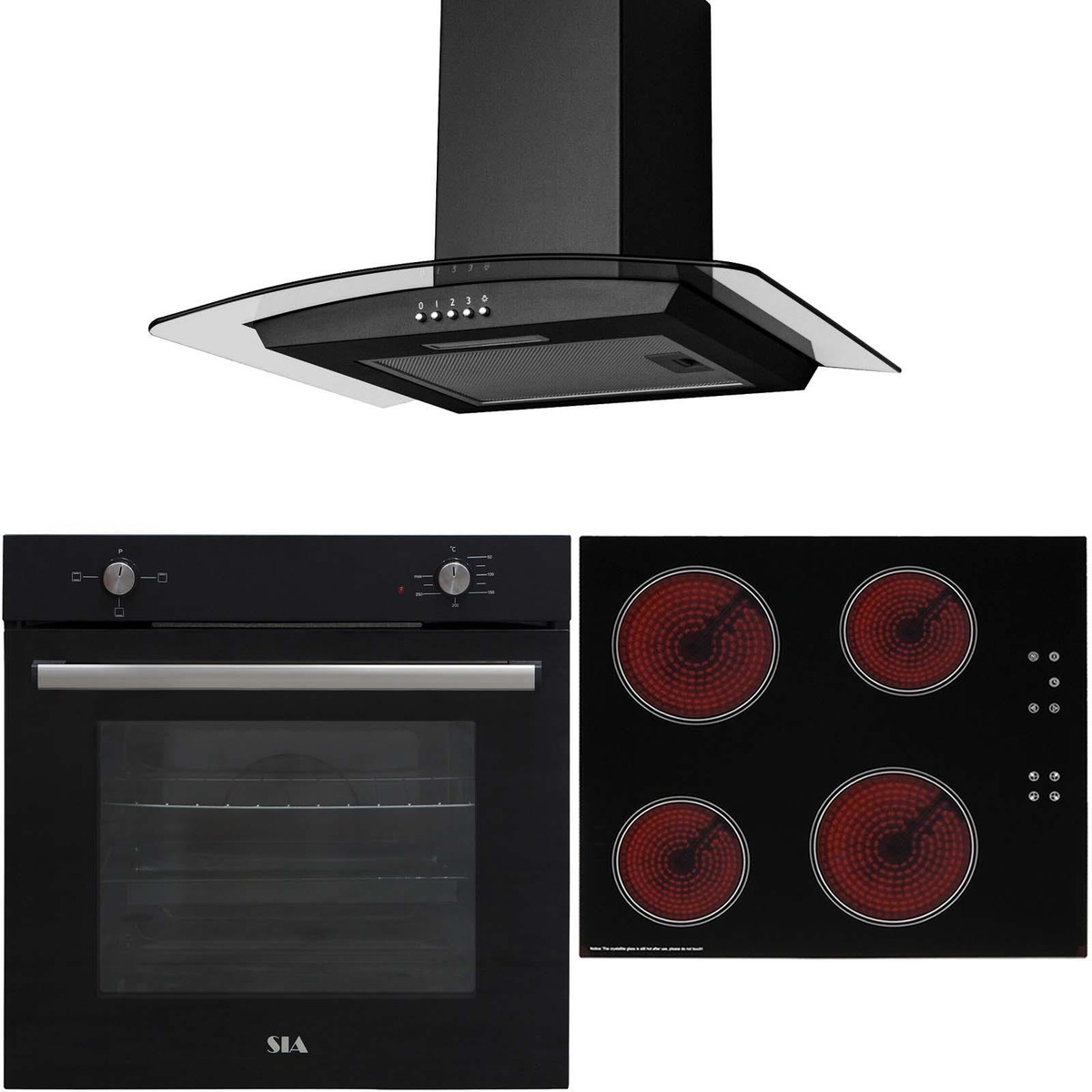

The SSO10BL-CERH60BL-CGH60BL pack from SIA is a stylish yet functional, built-in single oven, 4 zone electric ceramic hob and curved chimney cooker hood. The simple dial controls make using the oven a piece of cake and it can be mounted under a worktop or at eye level, so it can match any kitchen style. These appliances have been chosen to complement each others design and fit into any modern kitchen.
Ceramic refers to the finish of a hob rather than the workings of the hob itself. These cooktops work thanks to the heating elements underneath the glass surface which warm up and transfer heat to the selected cooking zone. They are considerably quicker to heat up than their solid plate counterparts. The streamlined and stylish look of ceramic glass along with the ease of use and wipe-clean facade make ceramic hobs a popular choice.
The CGH60BL cooker hood is suitable for either internal re-circulation – air is passed through a charcoal filter, purified and released back into the kitchen, or external extraction – cooking odours and vapours are transferred outside with the help of a ducting kit. Please see below for the appropriate accessories.
SIA SSO10BL 60cm Black Built In Multi Function Electric Single Oven 75L Capacity
Features
Main colour: black
Removable door
Internal light
Multi-function
Oven type: static
Technical Specifications
Installation type: built-in and built-under
Temperature range (ºC): 50-300
Power (kW): 2.2
Net capacity (L): 75
Energy class: A+
Fuse rating (A): 10 (can be used with a plug)
Product dimensions (mm): W595 x D566 x H595
Number of shelves: 1
Number of oven trays: 1
Guarantee: 1 year
This product comes with a cable & (13A) Plug
SIA CERH60BL 60cm 4 Zone Touch Control Electric Ceramic Hob In Black
Features
9 power levels
Side soft touch controls
Residual heat indicators
Easy wipe clean surface
Child safety lock
Frameless design
99 minute timer (can also be used as a minute minder)
Auto shutdown protection
Heating Zones
Front left zone size (mm): 145 | zone power (kW): 1.2
Rear left zone size (mm): 180 | zone power (kW): 1.8
Front right zone size (mm): 180 | zone power (kW): 1.8
Rear right zone size (mm): 145 | zone power (kW): 1.2
Technical
Nominal power (kW): 6.0
Fuse rating (A): 30
Product dimensions (mm): W580 x D510 x H65
Cut-out dimensions (mm): W560 x D490
Net / gross weight (kg): 8.0 / 9.5
Guarantee: 5 year parts & 2 year labour upon registration
Please note this appliance must be hardwired by a qualified electrician
SIA CGH60BL 60cm Black Curved Glass Chimney Cooker Hood Kitchen Extractor Fan
Features
3 variable speeds
Push button controls
1 x 1W LED light
Single fan motor
Ducted or re-circulated installation
1 x dishwasher safe aluminium grease filter
2 x telescopic chimney sections
Optional Accessories
SIA2 re-circulation charcoal filters available from our store
D5 & D7 external ducting kits available from our store
Fitting Notes
Please ensure there is enough ceiling height to accommodate the clearance needed between the appliance and the hob.
Required height over gas hob (mm): 750
Required height over electric hob (mm): 650
Please note that if the hob manual states the clearance must be greater than the above, this will override these instructions.
Technical Specifications
Ducting outlet diameter (mm): 150
Extraction rate (m3/hr): 400
Noise level (dBa): 65
Fuse rating (A): 3
Product dimensions (mm): W600 x D450 x H430-800
Height of chimney sections (mm): 400 + 400
Net / gross weight (kg): 8.0 / 10.0
Power (W): 26
Mains lead length (m): 1
Guarantee: 5 year parts & 2 year labour upon registration
Please note that there is no plug supplied with this product.
