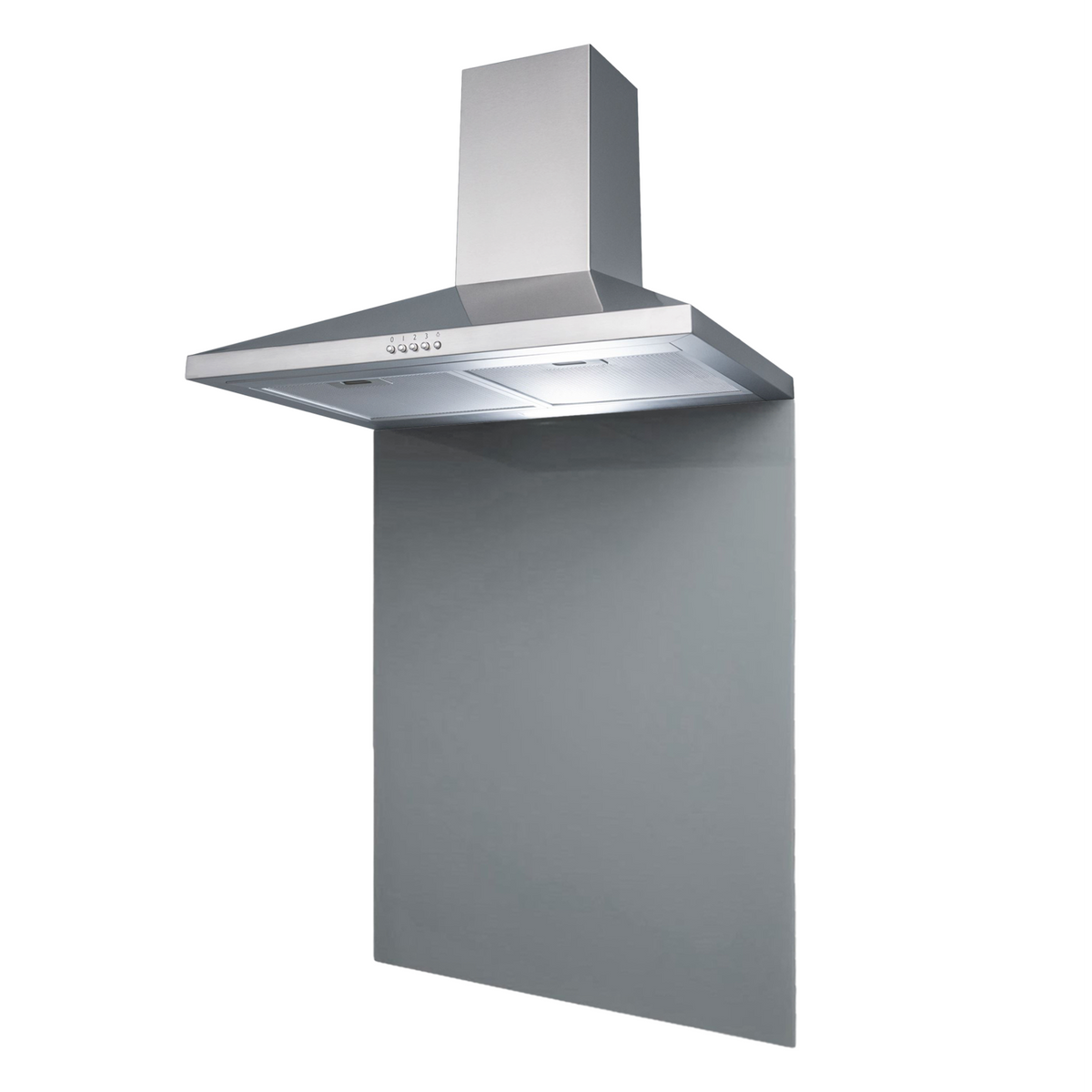

The CHL60SS-SP60GY pack consists of a 60cm stainless steel chimney cooker hood and a matching grey toughened glass splashback. The cooker hood is manufactured to a high standard that offers superb performance. It boasts a sleek stainless-steel design that will match perfectly with any modern style kitchen and as an SIA appliance, you can look forward to a designer cooker hood without the designer price tag!
This cooker hood is suitable for either internal re-circulation – air is passed through a charcoal filter, purified and released back into the kitchen, or external extraction – cooking odours and vapours are transferred outside with the help of a ducting kit. Please see below for the appropriate accessories.
This product boasts a 2 Years Parts & Labour Guarantee* to give you the reassurance you need when buying a new appliance.
Features
3 variable speeds
Push button controls
1 x 1.5W LED lamp
Single fan motor
Ducted or re-circulated installation
2 x dishwasher safe aluminium grease filters
2 x telescopic chimney sections
Optional Accessories
SIA2 re-circulation filters available to buy from our store
D5 & D7 external ducting kits available to buy from our store
Fitting Notes
Please ensure there is enough ceiling height to accommodate the clearance needed between the appliance and the hob.
Required height over gas hob (mm): 750
Required height over electric hob (mm): 650
Please note that if the hob manual states the clearance must be greater than the above, this will override these instructions.
Technical Specification
Ducting outlet diameter (mm): 150
Extraction rate (m3/hr): 400
Noise level (dBa): 66
Fuse rating (A): 3
Product dimensions (mm): W600 x D450 x H610-760
Height of chimney sections (mm): 330 + 330
Net / gross weight (kg): 9.0/11.0
Power (W): 26.5
Mains lead length (m): 1
Please note that there is no plug supplied with this product.
SIA SP60GY 60cm x 75cm Grey Toughened Glass Kitchen Splashback
Technical Specifications
Dimensions (mm): W600 x H750
Fitting requirements: splashback adhesive (not included)
*Guarantee subject to registration within 30 days of purchase.
