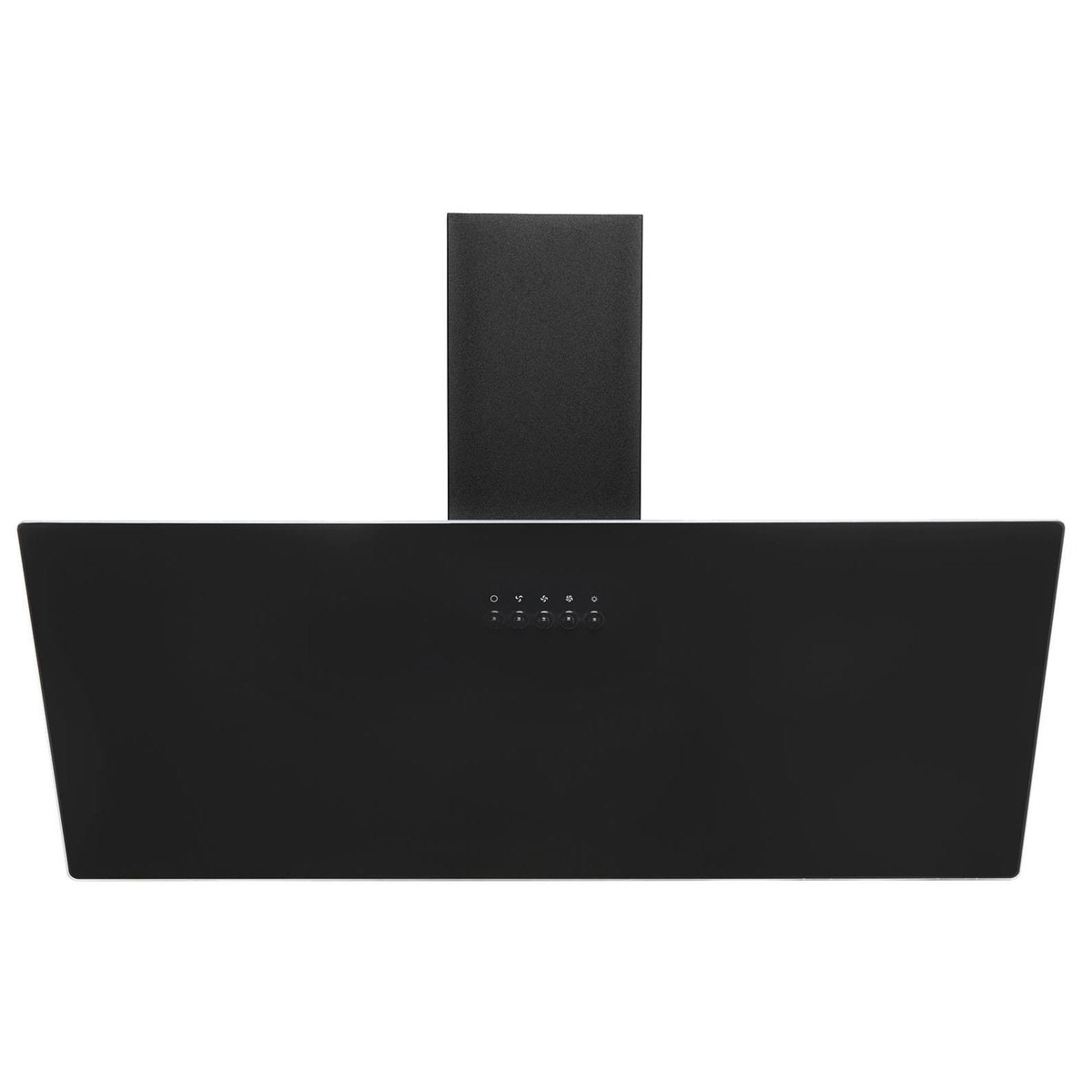

The AH90BL is a 90cm angled cooker hood with a stylish black glass finish. Its cutting-edge design makes this appliance a perfect addition to contemporary kitchens and the 2W LED downlight helps to illuminate your cooking area. Another added bonus of this cooker hood is the dishwasher-safe aluminium grease filter to help prevent the accumulation of unwanted grease in your cooker hood and ensure your appliance is kept in pristine condition. Angled cooker hoods are the perfect choice for those with little headroom. The sloped design and shallower depth mean they do not protrude from the wall as much as other cooker hoods.
This cooker hood is suitable for either internal re-circulation – air is passed through a charcoal filter, purified and released back into the kitchen, or external extraction – cooking odours and vapours are transferred outside with the help of a ducting kit. Please see below for the appropriate accessories.
This product boasts a 2 Years Parts & Labour Guarantee*
Features
3 variable speeds
Push button controls
1 x 2W LED light
Single motor
Ducted or re-circulating installation
1 x dishwasher safe aluminium grease filter
2 x telescopic chimney sections
Optional accessories
SIA2 re-circulation charcoal filters available from our store
D5 & D7 external ducting kits available from our store
Fitting Notes
Please ensure there is enough ceiling height to accommodate the clearance needed:
Required height over gas hob (mm): 700
Required height over electric hob (mm): 600
Please note that if the hob manual states the clearance must be greater than the above, this will override these instructions.
Technical Specifications
Ducting outlet diameter (mm): 150
Extraction rate (m3/hr): 450
Noise level (dBa): 68
Fuse rating (A): 3
Product dimensions (mm): W900 x D320 x H630-930
Height of chimney sections (mm): 330
Net / gross weight (kg): 9.3 / 12.4
Power (W): 47
Mains lead length (m): 1
Please note that there is no plug supplied with product.
*Guarantee subject to registration within 30 days of purchase.
