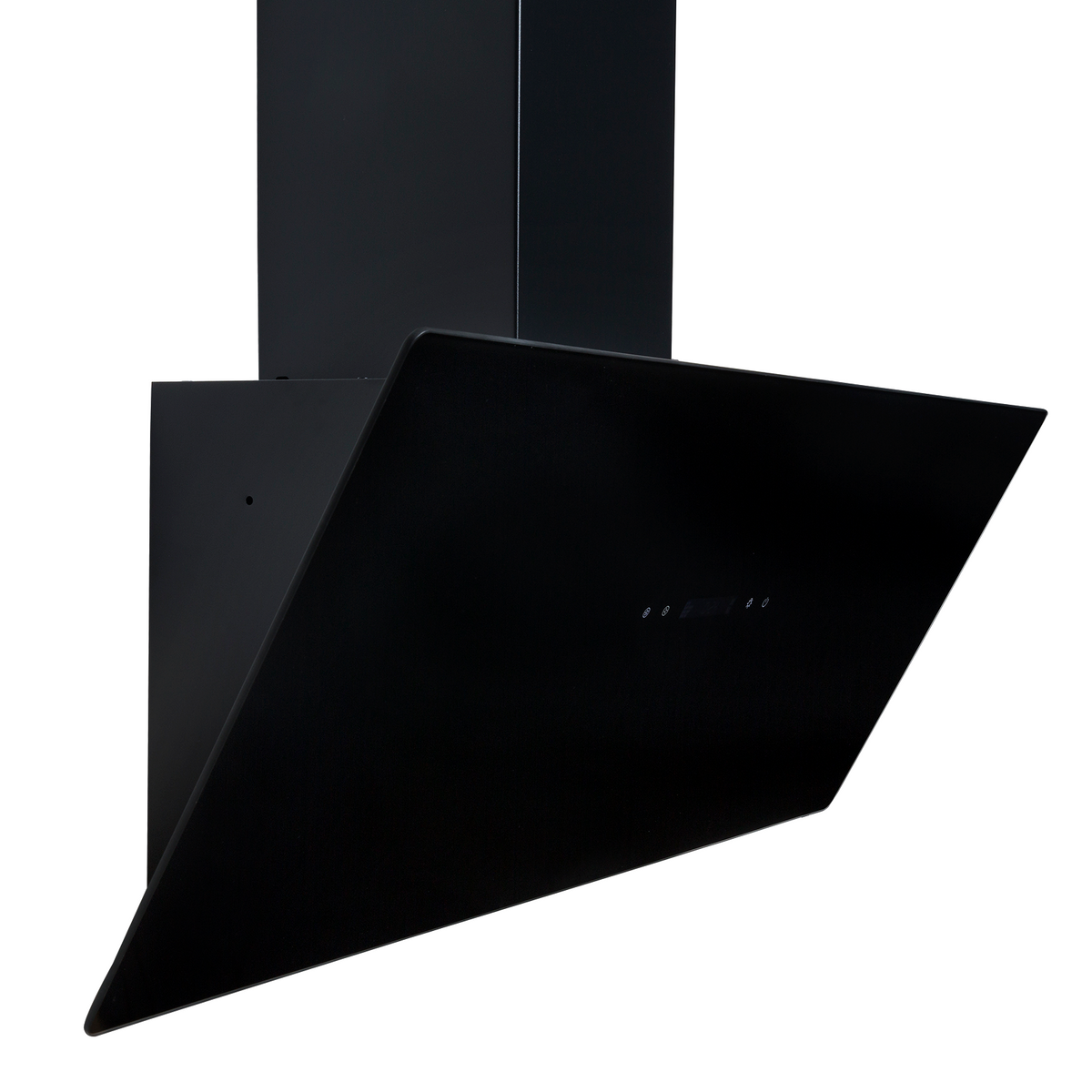

The TAG90BL is a modern touch control cooker hood with a stylish black glass finish that will fit in with any kitchens décor. 3 separate speed settings are included to match any level of cooking and the 2 x 1W LED downlights help illuminate your cooking zone. This appliance comes with an easy-to-use touch control display and 2 washable grease filters to help you keep your kitchen grease free. Angled cooker hoods are the perfect choice for those with little headroom. The sloped design and shallower depth mean they do not protrude from the wall as much as other cooker hoods.
This cooker hood is suitable for either internal re-circulation – air is passed through a charcoal filter, purified and released back into the kitchen, or external extraction – cooking odours and vapours are transferred outside with the help of a ducting kit. Please see below for the appropriate accessories.
This product boasts a 2 Years Parts & Labour Guarantee*
Features
3 variable speeds
Soft touch controls
2 x 1W LED lights
Clock & Timer
Ducted or re-circulating installation
2 x dishwasher safe aluminium grease filters
2 x telescopic chimney sections
Optional accessories
SIA2 re-circulation charcoal filters available from our store
D5 & D7 external ducting kits available from our store
Fitting Notes
Please ensure there is enough ceiling height to accommodate the clearance needed between the appliance and the hob.
Required height over gas hob (mm): 750
Required height over electric hob (mm): 650
Please note that if the hob manual states the clearance must be greater than the above, this will override these instructions.
Technical Specifications
Ducting outlet diameter (mm): 150
Extraction rate (m3/hr): 320
Noise level (dBa): 68
Fuse rating (A): 3
Product dimensions (mm): W900 x D320 x H630-930
Height of chimney sections (mm): 330 + 330
Net / gross weight (kg): 9.3 / 12.4
Power (W): 47
Mains lead length (m): 1
Please note that there is no plug supplied with this product.
*Guarantee subject to registration within 30 days of purchase.
